QOR Building System

Herline hinge standard, optional for lift-offs and concealed Hardware
PRODUCT INSTRUCTION

D4 Doors QOR

D4 Doors QOR

Aluminium construction to suit modern architectual designs.

D4 Doors QOR Building System

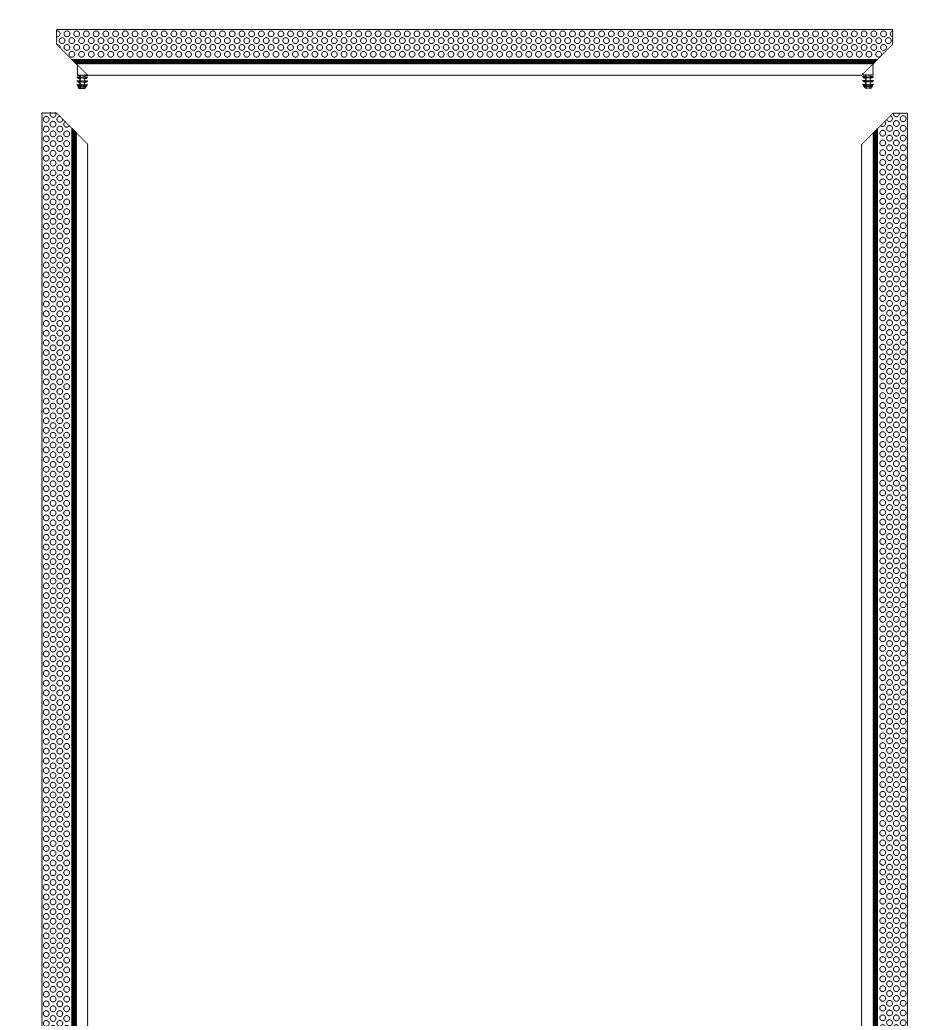

Single Rebated Jamb Set



  • Max. Door Height: 3200mm
  • Max. Door Width: 1200mm
  • Door Thickness: 35mm
  • Hardware: Herline hinge, concealed hinges.

In-Swing Jamb Set

  • Max. Door Height: 3500mm
  • Hardware: Concealed hinges with soft-close
  • Door Thickness: 40mm

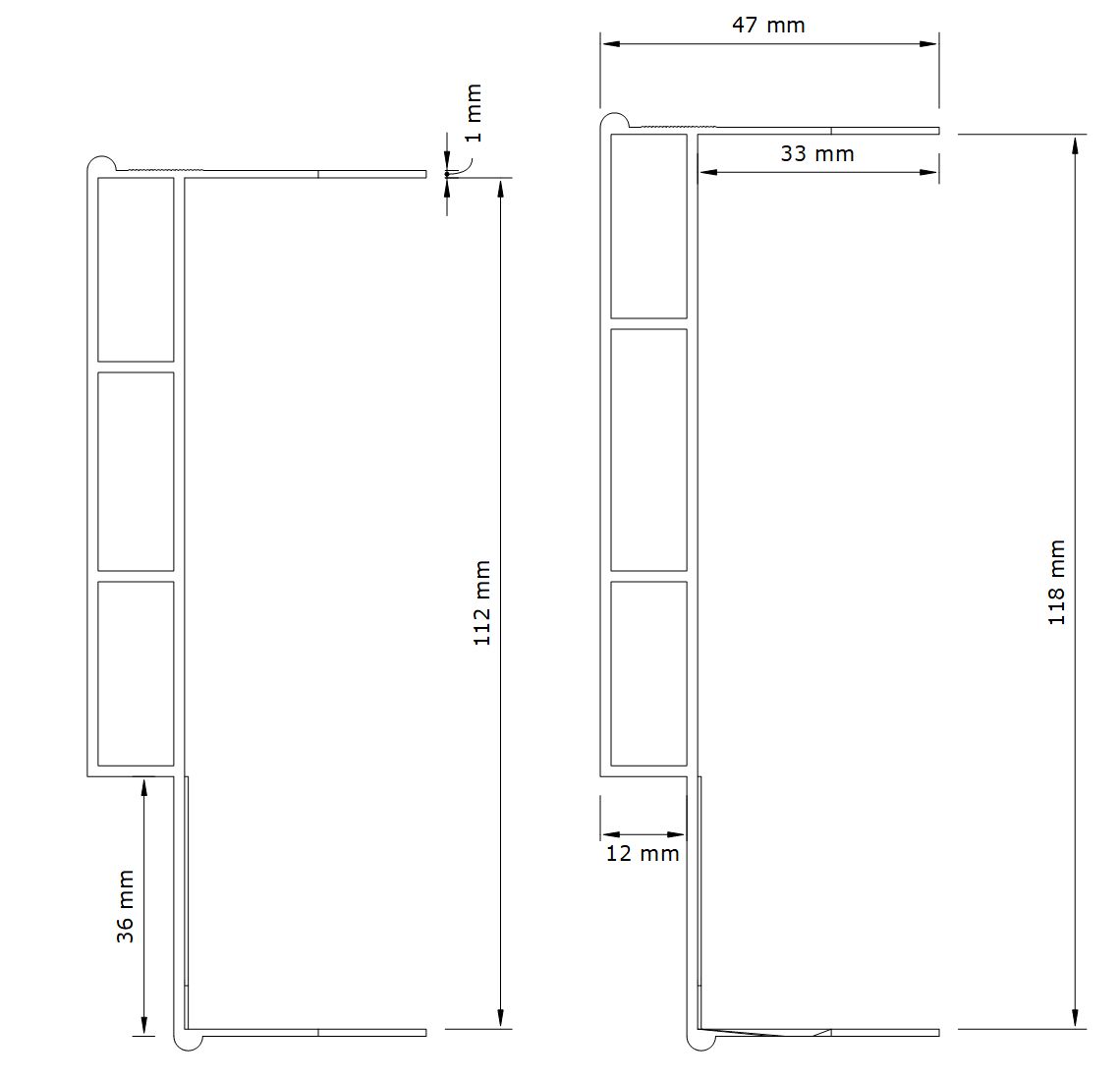

Square set single rabated jambs available for 112 & 118 thick wall finishes.

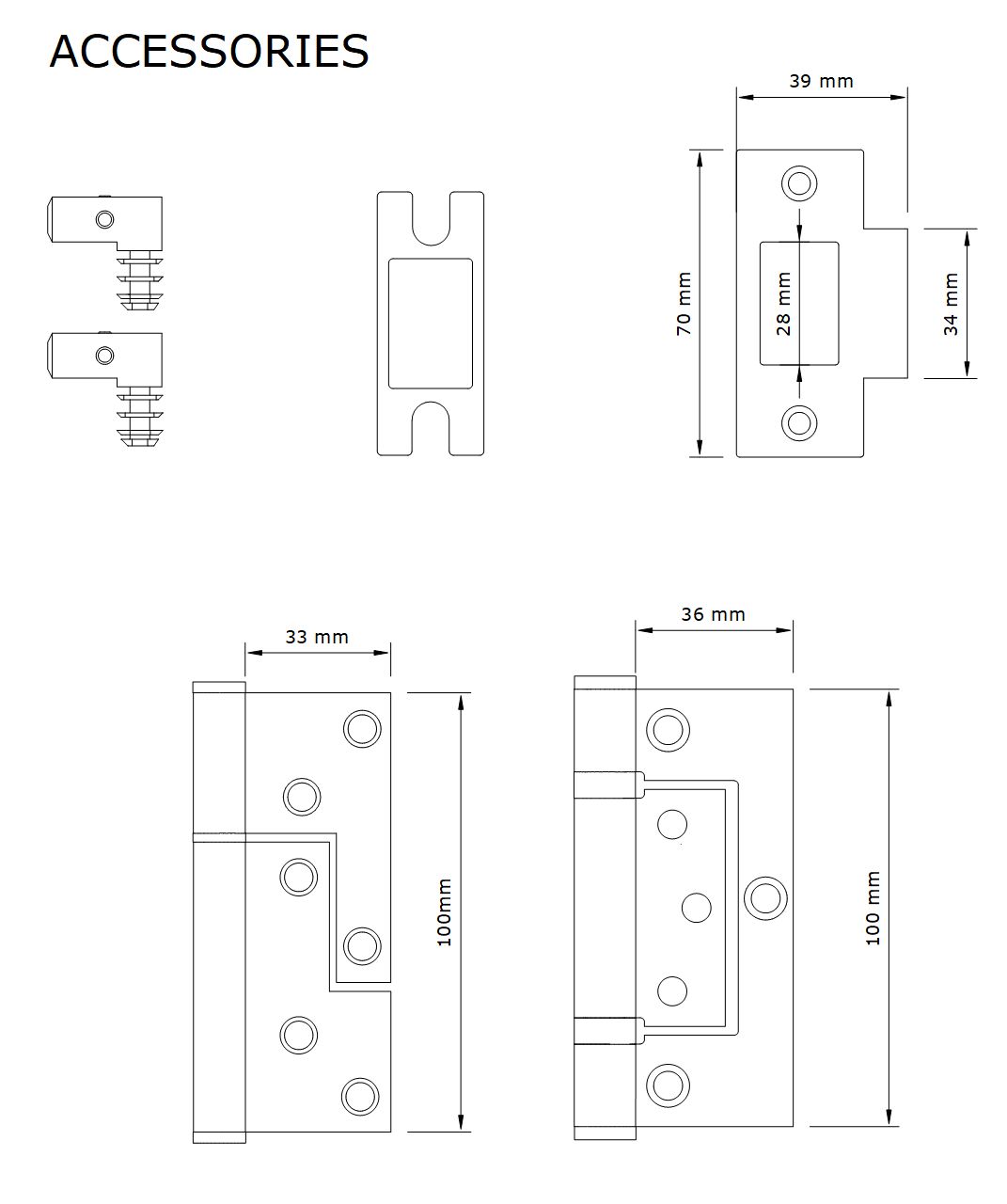

Each set comes with 3 x herline/lift-off hinges with optional concealed hinges available.
